Ministatie meteo cu senzorul DHT11 si Arduino

Nicu FLORICA 2 mai 2013 Arduino, Control la distanta 5 comentarii 10,336 Vizualizări

Desi o statie meteo ofera mai multe date decat temperatura si umiditatea, am considerat ca si aceste date sunt „bune” pentru o „ministatie meteo”…

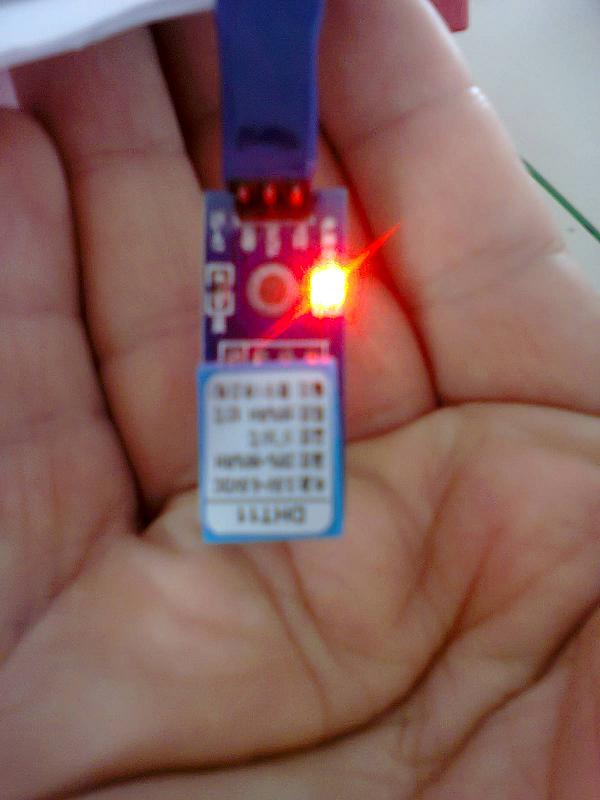

Totul se bazeaza pe un senzor dedicat DHT11, care nu are o precize uimitoare, dar pentru aplicatii casnice este acceptabil (domeniu de temperatura 0..50oC cu precizie de +2oC, respectiv umiditate 20..90%RH cu o precizie de +5%RH).

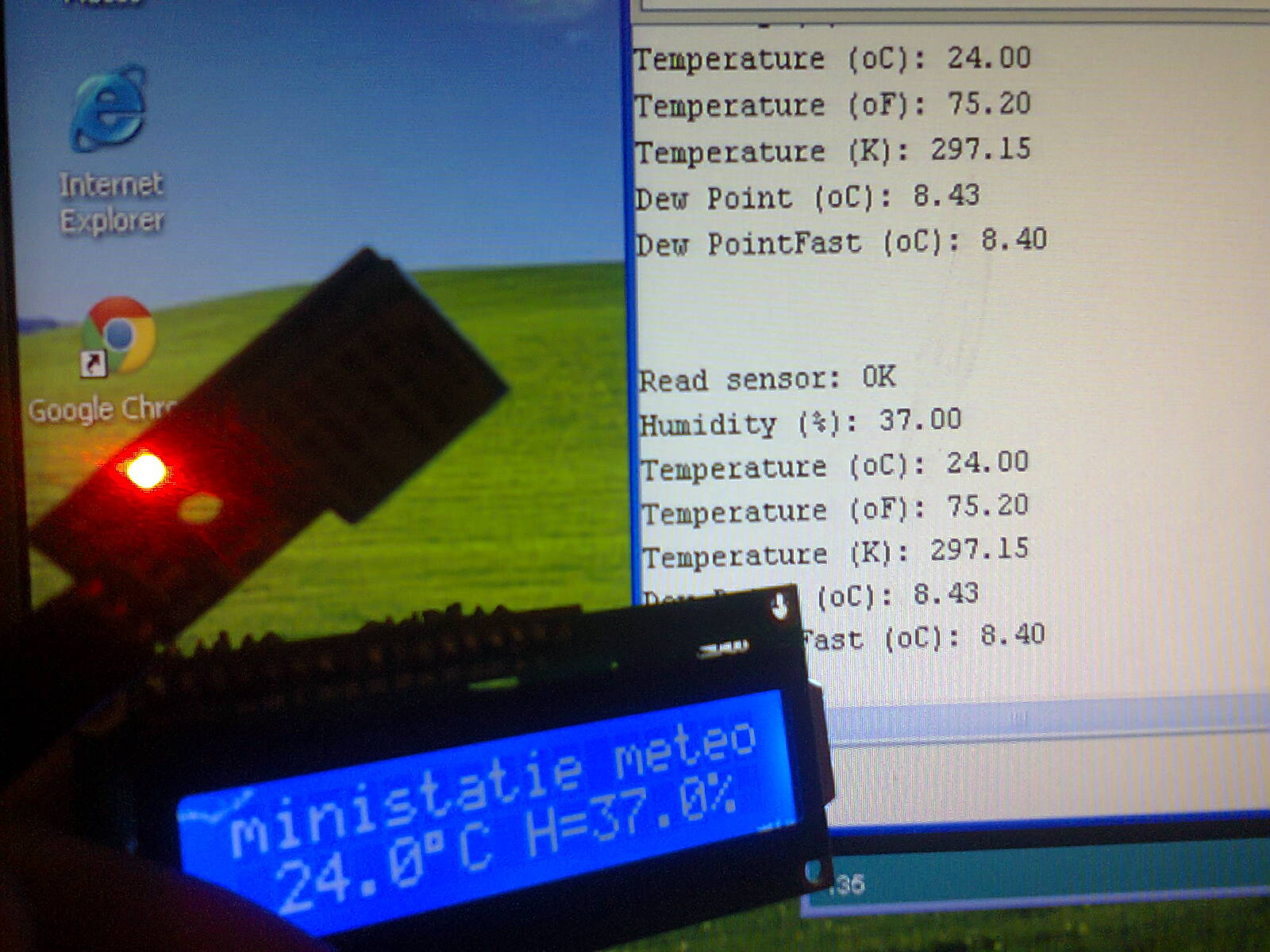

Prima proba s-a facut cu senzorul DHT11 avand pinul conectat la A2 (analog 2) de la Arduino, iar afisajul cu cristale lichide cu 16 coloane si 2 randuri LCD1602 conectat ca in exemplele de pe site-ul Arduino, sketck-ul fiind:

// LCD1602A
// * LCD RS pin to digital pin 12
// * LCD Enable pin to digital pin 11
// * LCD D4 pin to digital pin 5
// * LCD D5 pin to digital pin 4
// * LCD D6 pin to digital pin 3
// * LCD D7 pin to digital pin 2
// * LCD R/W pin to ground
// * 10K resistor:
// * ends to +5V and ground
// * wiper to LCD VO pin (pin 3)
//Celsius to Fahrenheit conversion
double Fahrenheit(double celsius)
{
return 1.8 * celsius + 32;
}

double Kelvin(double celsius)
{
return celsius + 273.15;
}

double dewPoint(double celsius, double humidity)
{
double RATIO = 373.15 / (273.15 + celsius); // RATIO was originally named A0, possibly confusing in Arduino context
double SUM = -7.90298 * (RATIO – 1);
SUM += 5.02808 * log10(RATIO);
SUM += -1.3816e-7 * (pow(10, (11.344 * (1 – 1/RATIO ))) – 1) ;
SUM += 8.1328e-3 * (pow(10, (-3.49149 * (RATIO – 1))) – 1) ;
SUM += log10(1013.246);
double VP = pow(10, SUM – 3) * humidity;
double T = log(VP/0.61078); // temp var
return (241.88 * T) / (17.558 – T);
}

// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
double a = 17.271;
double b = 237.7;
double temp = (a * celsius) / (b + celsius) + log(humidity/100);
double Td = (b * temp) / (a – temp);
return Td;
}

#include
dht11 DHT11;
#define DHT11PIN A2 // sensor pin is at A2
// include the library code:
#include
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup()
{
Serial.begin(9600);
Serial.println(„DHT11 TEST PROGRAM „);
Serial.print(„LIBRARY VERSION: „);
Serial.println(DHT11LIB_VERSION);
Serial.println();
// set up the LCD’s number of columns and rows:
lcd.begin(16, 2);
// Print a message to the LCD.
lcd.print(„ministatie meteo”);
}

void loop()
{
Serial.println(„n”);

int chk = DHT11.read(DHT11PIN);

Serial.print(„Read sensor: „);
switch (chk)
{
case DHTLIB_OK:
Serial.println(„OK”);
break;
case DHTLIB_ERROR_CHECKSUM:
Serial.println(„Checksum error”);
break;
case DHTLIB_ERROR_TIMEOUT:
Serial.println(„Time out error”);
break;
default:
Serial.println(„Unknown error”);
break;
}

Serial.print(„Humidity (%): „);
Serial.println((float)DHT11.humidity, 2);

Serial.print(„Temperature (oC): „);
Serial.println((float)DHT11.temperature, 2);

Serial.print(„Temperature (oF): „);
Serial.println(Fahrenheit(DHT11.temperature), 2);

Serial.print(„Temperature (K): „);
Serial.println(Kelvin(DHT11.temperature), 2);

Serial.print(„Dew Point (oC): „);
Serial.println(dewPoint(DHT11.temperature, DHT11.humidity));

Serial.print(„Dew PointFast (oC): „);
Serial.println(dewPointFast(DHT11.temperature, DHT11.humidity));

delay(2000);

// set the cursor to column 0, line 1
// (note: line 1 is the second row, since counting begins with 0):
lcd.setCursor(1, 1);
// print the number of seconds since reset:
lcd.print((float)DHT11.temperature, 1);
lcd.write(0b11011111);
lcd.print(„C H=”);

lcd.print((float)DHT11.humidity, 1);
lcd.print(„%”);
}

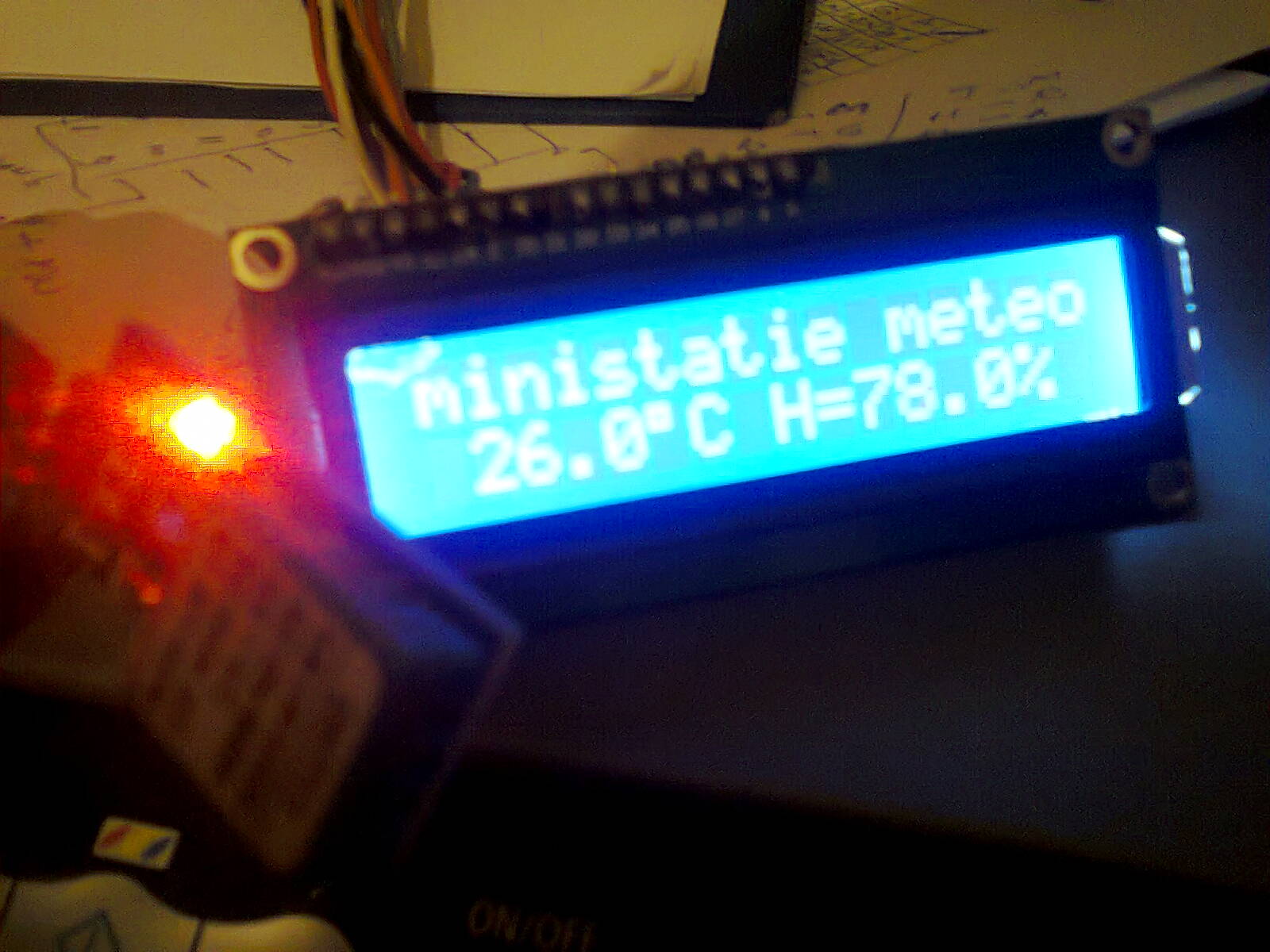

Am facut si un filmulet numit ministatie meteo cu DHT11, LCD1602 si Arduino (I):

[yframe url=’http://www.youtube.com/watch?v=U_jQRzSSceM’]

Am conectat apoi afisajul LCD 1602A cu interfata i2c cu sketch-ul gasit la http://blog.gotencool.com/2012_03_01_archive.html modificand adresa de la 0x27 la 0x20

#include
#include <liquidcrystal_i2c .h>
LiquidCrystal_I2C lcd(0x20,16,2); // 0x27 es la direccion del LCD 16×2
void setup(){
lcd.init();
lcd.backlight(); //enciende la iluminacion
lcd.setCursor(0, 0);
lcd.print(„Probando i2c”);
}
void loop(){
delay(1000);
}
apoi am combinat cele 2 sketch-uri:
#include
#include <liquidcrystal_i2c .h>
LiquidCrystal_I2C lcd(0x20,16,2); // 0x27 es la direccion del LCD 16×2
//Celsius to Fahrenheit conversion
double Fahrenheit(double celsius)
{
return 1.8 * celsius + 32;
}
double Kelvin(double celsius)
{
return celsius + 273.15;
}
double dewPoint(double celsius, double humidity)
{
double RATIO = 373.15 / (273.15 + celsius); // RATIO was originally named A0, possibly confusing in Arduino context
double SUM = -7.90298 * (RATIO – 1);
SUM += 5.02808 * log10(RATIO);
SUM += -1.3816e-7 * (pow(10, (11.344 * (1 – 1/RATIO ))) – 1) ;
SUM += 8.1328e-3 * (pow(10, (-3.49149 * (RATIO – 1))) – 1) ;
SUM += log10(1013.246);
double VP = pow(10, SUM – 3) * humidity;
double T = log(VP/0.61078); // temp var
return (241.88 * T) / (17.558 – T);
}
// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
double a = 17.271;
double b = 237.7;
double temp = (a * celsius) / (b + celsius) + log(humidity/100);
double Td = (b * temp) / (a – temp);
return Td;
}
#include
dht11 DHT11;
#define DHT11PIN A2 // sensor pin is at A2
void setup()
{
Serial.begin(9600);
Serial.println(„DHT11 TEST PROGRAM „);
Serial.print(„LIBRARY VERSION: „);
Serial.println(DHT11LIB_VERSION);
}
void loop()
{
Serial.println(„n”);
int chk = DHT11.read(DHT11PIN);
Serial.print(„Read sensor: „);
switch (chk)
{
case DHTLIB_OK:
Serial.println(„OK”);
break;
case DHTLIB_ERROR_CHECKSUM:
Serial.println(„Checksum error”);
break;
case DHTLIB_ERROR_TIMEOUT:
Serial.println(„Time out error”);
break;
default:
Serial.println(„Unknown error”);
break;
}
Serial.print(„Humidity (%): „);
Serial.println((float)DHT11.humidity, 2);
Serial.print(„Temperature (oC): „);
Serial.println((float)DHT11.temperature, 2);
Serial.print(„Temperature (oF): „);
Serial.println(Fahrenheit(DHT11.temperature), 2);
Serial.print(„Temperature (K): „);
Serial.println(Kelvin(DHT11.temperature), 2);
Serial.print(„Dew Point (oC): „);
Serial.println(dewPoint(DHT11.temperature, DHT11.humidity));
Serial.print(„Dew PointFast (oC): „);
Serial.println(dewPointFast(DHT11.temperature, DHT11.humidity));
delay(2000);
//LCD16x2 with i2c control – see http://www.tehnic.go.ro
lcd.init();
lcd.backlight(); //voi aprinde si led-ul de fundal
// set up the LCD’s number of columns and rows:
//lcd.begin(16, 2);
// Print a message to the LCD.
lcd.print(„ministatie meteo”);
lcd.setCursor(1, 1);
// print the number of seconds since reset:
lcd.print((float)DHT11.temperature, 1);
lcd.write(0b11011111);
lcd.print(„C H=”);
lcd.print((float)DHT11.humidity, 1);
lcd.print(„%”);
delay(2000);
}

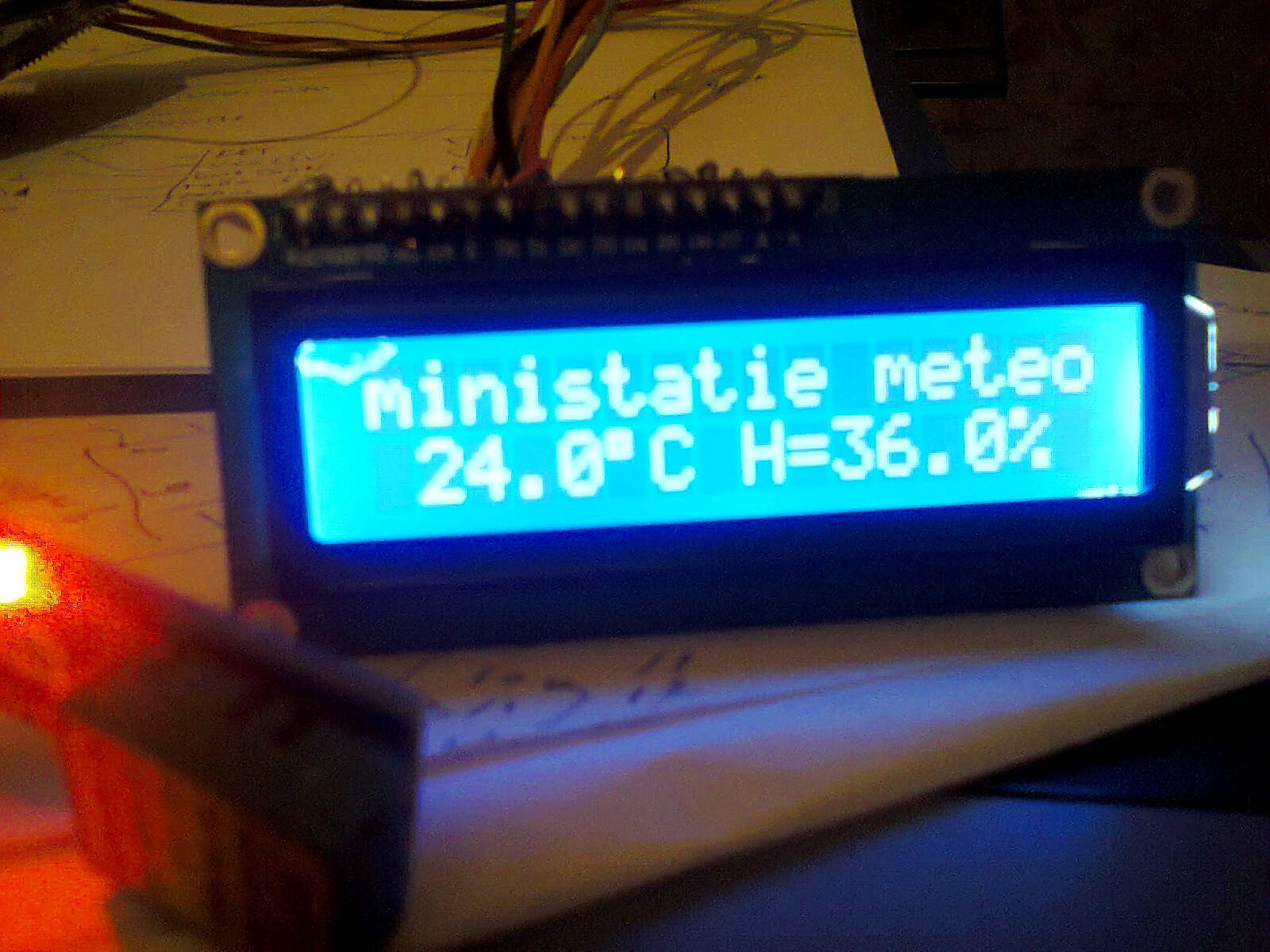

Un filmulet, care prezinta modul de functionare, se numeste ministatie meteo cu DHT11, LCD1602 si Arduino (II)
[yframe url=’http://www.youtube.com/watch?v=WtyjfMv-fHQ’]

Am schimbat un pic aranjamentul din sketch:

#include
#include <liquidcrystal_i2c .h>
LiquidCrystal_I2C lcd(0x20,16,2); // 0x27 es la direccion del LCD 16×2

//Celsius to Fahrenheit conversion
double Fahrenheit(double celsius)
{
return 1.8 * celsius + 32;
}

double Kelvin(double celsius)
{
return celsius + 273.15;
}

double dewPoint(double celsius, double humidity)
{
double RATIO = 373.15 / (273.15 + celsius); // RATIO was originally named A0, possibly confusing in Arduino context
double SUM = -7.90298 * (RATIO – 1);
SUM += 5.02808 * log10(RATIO);
SUM += -1.3816e-7 * (pow(10, (11.344 * (1 – 1/RATIO ))) – 1) ;
SUM += 8.1328e-3 * (pow(10, (-3.49149 * (RATIO – 1))) – 1) ;
SUM += log10(1013.246);
double VP = pow(10, SUM – 3) * humidity;
double T = log(VP/0.61078); // temp var
return (241.88 * T) / (17.558 – T);
}

// delta max = 0.6544 wrt dewPoint()
// 5x faster than dewPoint()
// reference: http://en.wikipedia.org/wiki/Dew_point
double dewPointFast(double celsius, double humidity)
{
double a = 17.271;
double b = 237.7;
double temp = (a * celsius) / (b + celsius) + log(humidity/100);
double Td = (b * temp) / (a – temp);
return Td;
}

#include
dht11 DHT11;
#define DHT11PIN A2 // sensor pin is at A2

void setup()
{
Serial.begin(9600);
Serial.println(„DHT11 TEST PROGRAM „);
Serial.print(„LIBRARY VERSION: „);
Serial.println(DHT11LIB_VERSION);

lcd.init();
lcd.backlight(); //voi aprinde si led-ul de fundal
// set up the LCD’s number of columns and rows:
//lcd.begin(16, 2);
// Print a message to the LCD.
lcd.print(„ministatie meteo”);
}
void loop()
{
Serial.println(„n”);
int chk = DHT11.read(DHT11PIN);
Serial.print(„Read sensor: „);
switch (chk)
{
case DHTLIB_OK:
Serial.println(„OK”);
break;
case DHTLIB_ERROR_CHECKSUM:
Serial.println(„Checksum error”);
break;
case DHTLIB_ERROR_TIMEOUT:
Serial.println(„Time out error”);
break;
default:
Serial.println(„Unknown error”);
break;
}

Serial.print(„Humidity (%): „);
Serial.println((float)DHT11.humidity, 2);

Serial.print(„Temperature (oC): „);
Serial.println((float)DHT11.temperature, 2);

Serial.print(„Temperature (oF): „);
Serial.println(Fahrenheit(DHT11.temperature), 2);

Serial.print(„Temperature (K): „);
Serial.println(Kelvin(DHT11.temperature), 2);

Serial.print(„Dew Point (oC): „);
Serial.println(dewPoint(DHT11.temperature, DHT11.humidity));

Serial.print(„Dew PointFast (oC): „);
Serial.println(dewPointFast(DHT11.temperature, DHT11.humidity));
delay(2000);

//LCD16x2 with i2c control – see http://www.tehnic.go.ro

lcd.setCursor(0, 1);
lcd.print(„t=”);
lcd.print((float)DHT11.temperature, 1);
lcd.write(0b11011111);
lcd.print(„C H=”);
lcd.print((float)DHT11.humidity, 1);
lcd.print(„%”);
delay(2000);
}

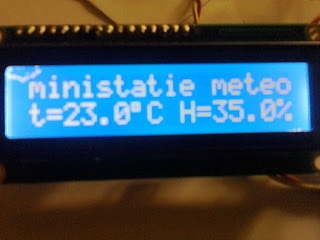

Am introdus si partea de „reclama”: „www.tehnic.go.ro creat de niq_ro”, apoi „ministatie meteo versiunea 1m1” pastrand si posibilitatea monitorizarii seriale pe ecranul monitorului.

#include

#include <liquidcrystal_i2c .h>
LiquidCrystal_I2C lcd(0x20,16,2); // 0x20 is adress my I2C adapter
#include
dht11 DHT11;
#define DHT11PIN A2 // sensor pin is at A2
void setup()
{
Serial.begin(9600);
Serial.println(„DHT11 TEST PROGRAM „);
Serial.print(„LIBRARY VERSION: „);
Serial.println(DHT11LIB_VERSION);
lcd.init();
lcd.backlight(); //voi aprinde si led-ul de fundal
// set up the LCD’s number of columns and rows:
lcd.begin(16, 2);
// Print a logo message to the LCD.
lcd.print(„www.tehnic.go.ro”);
lcd.setCursor(0, 1);
lcd.print(„creat de niq_ro”);
delay (2500);
lcd.clear();
// Print a permanent message to the LCD.
lcd.print(„ministatie meteo”);
lcd.setCursor(2, 1);
lcd.print(„versiunea 1m1”);
delay (2500);
}
void loop()
{
Serial.println(„n”);
int chk = DHT11.read(DHT11PIN);
Serial.print(„Read sensor: „);
switch (chk)
{
case DHTLIB_OK:
Serial.println(„OK”);
break;
case DHTLIB_ERROR_CHECKSUM:
Serial.println(„Checksum error”);
break;
case DHTLIB_ERROR_TIMEOUT:
Serial.println(„Time out error”);
break;
default:
Serial.println(„Unknown error”);
break;
}
Serial.print(„Humidity (%): „);
Serial.println((float)DHT11.humidity, 2);
Serial.print(„Temperature (oC): „);
Serial.println((float)DHT11.temperature, 2);
//LCD16x2 with i2c control – see http://www.tehnic.go.ro
lcd.setCursor(0, 1);
lcd.print(„t=”);
lcd.print((float)DHT11.temperature, 1);
lcd.write(0b11011111);
lcd.print(„C H=”);
lcd.print((float)DHT11.humidity, 1);
lcd.print(„%”);
delay(2000);
}
Filmuletul care prezinta cum se numeste ministatie meteo cu DHT11, LCD1602 si Arduino (III)
[yframe url=’http://www.youtube.com/watch?v=g44_R-DFV_o’]

Sursă: Nicu FLORICA

Etichete

Despre Nicu FLORICA

ELECTRONICA este prima pasiune a mea... am inceput pe la 7 ani cu un radio cu galena, in vacanta de vara, a fost o bucurie enorma sa aud in casti posturi de radio si in loc sa joc fotbal, ascultam la minunea facuta de mine.. Pasiunea asta mi-a fost insuflata de tata, dar mie nu mi-au placut niciodata televizoarele cu lampi, vazand ca se pot testa cu mana, dar nestiind exact unde am primic cateva socuri care m-au cam speriat... Am inceput sa studiez revistele Tehnium, incat pana in 1998 am colectia aproape completa, de multe ori ajungeam intr-un oras si primul loc vizitat era Anticariatul. Am si alte reviste, cat de cat complete: RET, Radio, Electronistul, etc Am construit destule montaje si scheme si marea mea placere e sa imbunatatesc performantele lor.... In revista Tehnium am publicat 2 articole, unul in 1/'95 numit LUMINA DINAMICA si altul in 1/'97 numit INDICATOR TRICOLOR CU LED... BICOLOR. mi-am facut un site numai cu multe scheme: http://www.tehnic.go.ro si activez pe http://www.elforum.ro, unde am ID-ul niq_ro (acest ID il folosesc in toate forumurile si site-urile).

5 Comentarii

  1. andreea
    25 iunie 2014 la 18:37

    buna ziua, ma intereseaza daca pot cumpara de la dumneavoastra acest proiect. ma refer la partea hardware gata facuta + software . Multumesc

    Răspunde
  2. iuliu19
    6 septembrie 2014 la 14:06

    Interesant. Asa ceva doresc.
    Dar eu nu am asemenea cunostinte si nici macar speranta ca as putea invata asa ceva .
    Eu doresc sa citesc pe ceva.. umiditatea .
    Temperatura o pot citi pe termometru . As dori sa stiu temperatura din exteriorul apartamentului .
    indicele termic probabil este o impartire intre temperatura exterioara si umiditatea exterioara .

    Răspunde
  3. daniel maticu
    26 martie 2017 la 22:10

    Buna seara, doresc sa contruiesc un timer electronic cu display led 7 segmente 4 digiti. va rog o mana de ajutor
    Multumesc

    Răspunde
  4. Eremia Gheorghe
    17 aprilie 2017 la 11:05

    Eu ți-am dat odată adresa mea,etc și totuxși nu ai șters datele mele așa cum scrie mai sus.Te rog un lucru și anume dacă mi e valabil acest sait ,DE CE NU SÎNTEȚI CORECȚI S-AU SÎNTEȚI ȘMECHERI?

    Răspunde
  5. nuoilokhung88com
    17 august 2025 la 14:31

    Nuôi lô khung 88, Soi cầu 247 miền bắc, Dự đoán xsmb chính xác, nuôi lô song,bạch thủ kép khung 2 3 5 ngày, Thống kê tần suất loto,Phân tích cầu lô rồng bạch kim, nuôi dàn đề 10 20 36 số chính xác nhất, Soi cầu 88,Soi cầu 24h miễn phí,Nuôi lô bạch thủ Website : https://nuoilokhung88.com/ SĐT: 0344681580 Địa chỉ: Việt Nam Hastag: #nuoilokhung88 #nuoilokhung #nuoilokhung88com

    Răspunde

Lasă un răspuns

Adresa ta de email nu va fi publicată. Câmpurile obligatorii sunt marcate cu *

Creat de electrodb.ro
© Copyright 2025, Toate drepturile rezervate
